Product Details:
|
| Model: | ZCC750H Zoomlion 2015 | Color: | White And Red |
|---|---|---|---|
| Max Boom Length: | 12-57m | Rated Power: | 175/220kw/RPm |
| Dimensions: | 12600*3320*3230mm | Rated Power: | 175/2200 KW/r/mi |
| Emission Standard: | Domestic II | Length Of Fixed Jib: | 6~18m |
| High Light: | Zoomlion Used Crawler Crane,ZCC750H Used Crawler Crane,Zoomlion Crawler Crane Used |
||

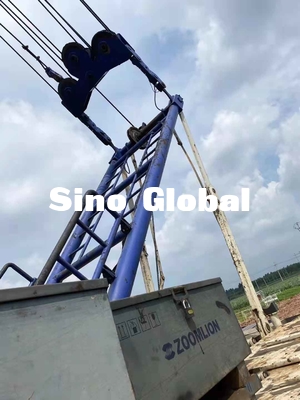

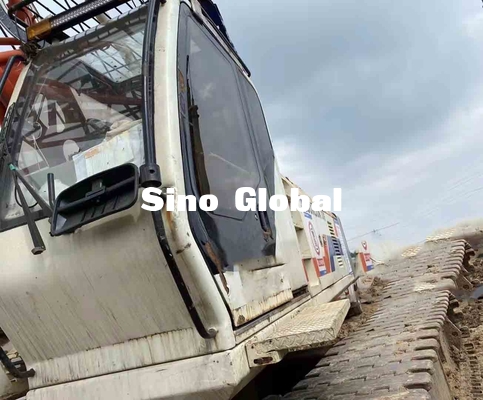

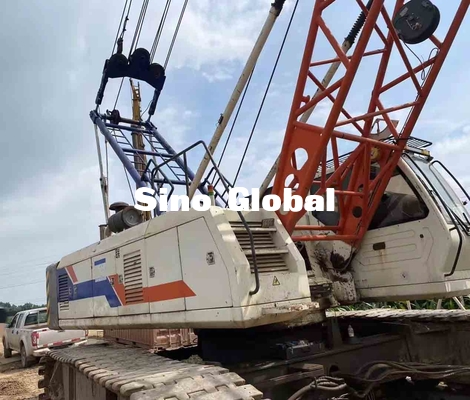

Used Zoomlion 75 ZCC750H Crawler Crane Model 2015
| Product Discription | ||
| Used Zoomlion 75 ZCC750H Crawler Crane Model 2015 | Unit | Value |
| Maximum lifting weight ×radius | t×m | 75×3.6 |
| Dead weight with basic boom attached | t | 62.5 |
| Length of main boom | m | 12~57 |
| Length of fixed jib | m | 6~18 |
| Maximum lifting weight of fixed jib | t | 6.5 |
| Fixed jib installation angle | ° | 10°,30° |
| Maximum length of main boom + fixed jib | m | 42+18 |
| Max.speed of single rope on the drum of auxiliary winch | m/min | 120 |
| Max.speed of single rope on the drum of derricking winch) | m/min | 120 |
| Luffing winch | m/min | 46 |
| Swing speed | rpm | 0~2.1 |
| Travelling speed | km/h | 0~1.35 |
| Gradeability | % | 30 |
| Pressure to the ground | MPa | 0.074 |
| Outline dimensions length×width×height | m | 12.4×3.4×3.25 |
| Rated power / speed | kW/r/min | 175/2200 |
| Maximum output torque / speed | Nm/ r/min | 1000/1400~1600 |
| Weichai engine emission standard | / | Domestic II |
| Crawler gauge ×crawler length × crawler width | mm | 4200×5440×800 |
| 2600×5440×800 | ||
