Product Details:
|
| Model: | QUY80A Fuwa | Color: | Red |
|---|---|---|---|
| Max Lifting Capacity: | 80 T | Main Boom Length: | 13-58m |
| Fly Job Length: | 9-18 M | Engine: | 209/2000 KW/r/min |
| Weight: | 24.6 T | Dimension: | 9670*3480*3460mm |
| High Light: | Second Hand Fuwa Crawler Crane 80 Ton,QUY80A Second Hand Fuwa Crawler Crane,Second Hand 80 ton crawler crane |
||

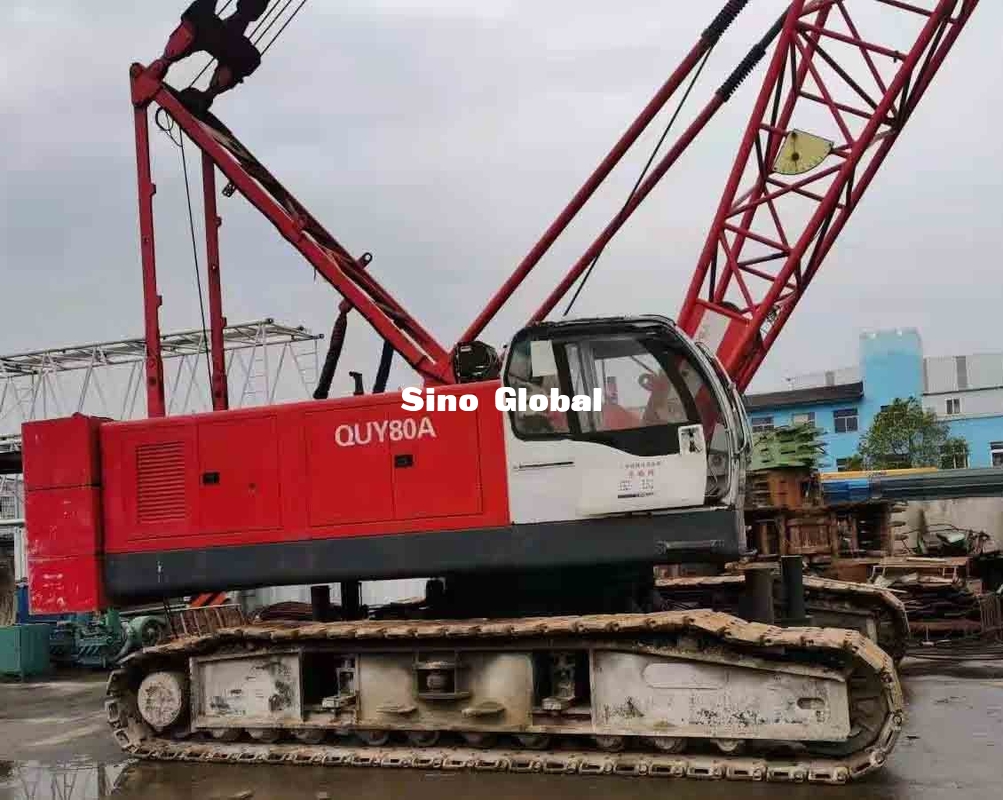

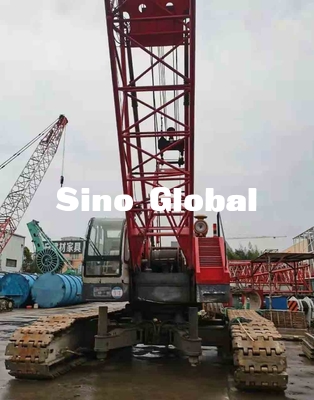

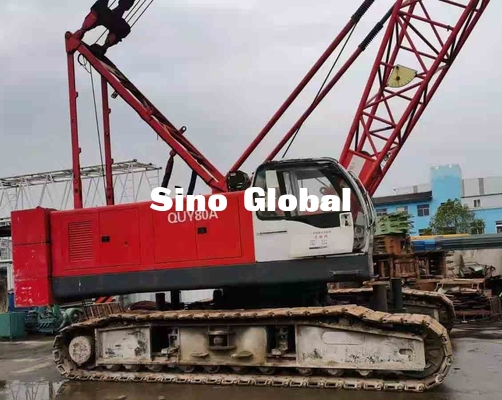

Used Fuwa 80 tons QUY80A Crawler Crane Model 2011
| Product Discription | ||
| Descriptions | Unit | Value |
| Max rated lifting capacty | t | 80 |
| Main boom length | m | 13~58 |
| Fly jib length | m | 9~18 |
| Main Beom length+Flyjib | m | 49+18 |
| Main boom angle | ° | 30~80 |
| Hook biocks (opional) | t | 80/50/25/9 |

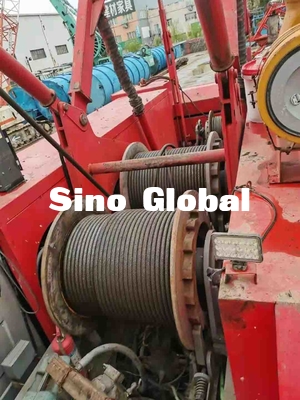

| Man winch hoist,lower(rope dia.φ26) | m/min | Hig 122/61; Low 84/42 |
| Aux wnch host,lower(rope dia.φ26) | m/min | Hig 122/61; Low 84/42 |
| Boom hoistt(rope dia.φ20) | m/min | 58 |
| Swing spead | r/min | 2 |
| Traval spead | kmh | High 2.2,Low 1.1 |
| Mtain hoist reevings | 10 | |
| Single rope lifting capacity | t | 8 |
| Gradeabiity | % | 30 |
| Enigne | KW/r/min | 209/2000(Import) |
| Swing radius | mm | 4820 |
| Overall dimension | mm | 6670*3480*3460 |
| Grane mass(with basic boom.80t hock) | 1 | 80.6 |
| Grourd bearing pressure | MPa | 0.08 |
| Counterweight | t | 24.8 |
