Product Details:
|
| Capacity: | 400T | Gross Weight: | 72000kg |
|---|---|---|---|
| Max Engine Power: | 205/2200 KW/rpm | Diimensions: | 17538mm*3000*4000mm |
| Max Travel Speed: | 80km/h | Steering Radius: | 12.5m |
| Wheel Formula: | 12*8 | Basic Boom: | 15.4m |
| Full Extension Boom: | 80m | Outrigger Span: | 9.4*9.6m |
| High Light: | Sany Used Truck Crane 80km/h,400T Used Truck Crane,Used Sany Truck Crane |
||

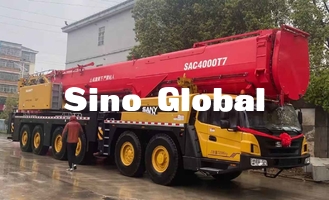

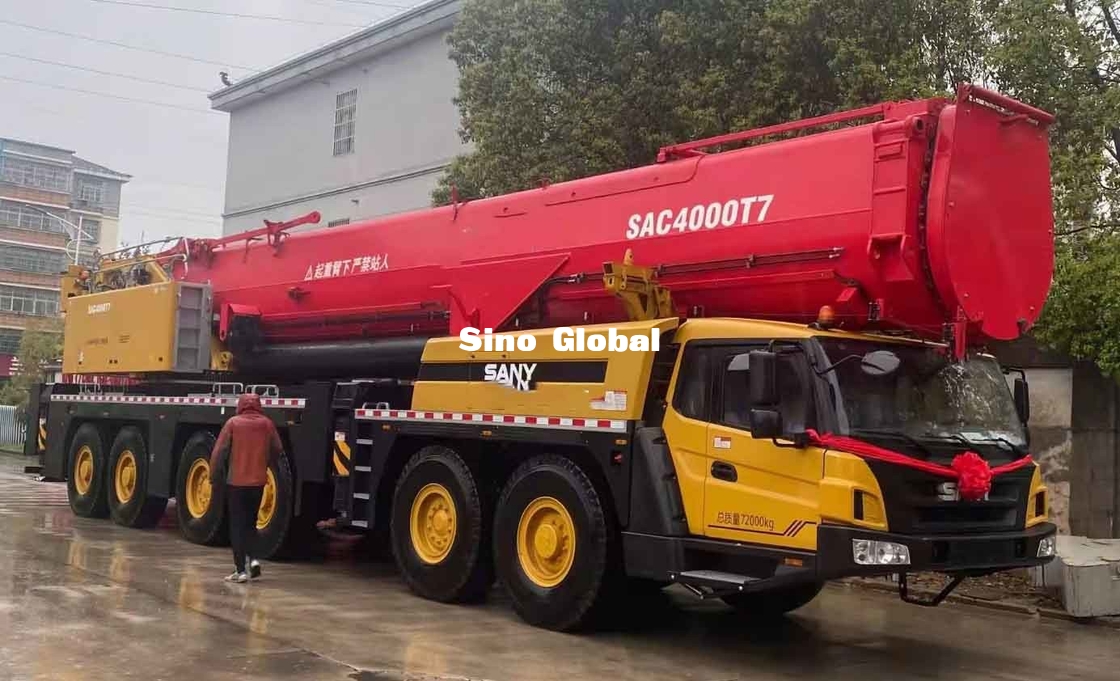

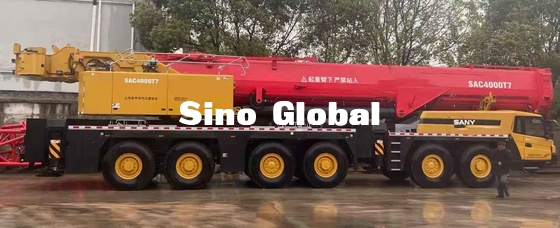

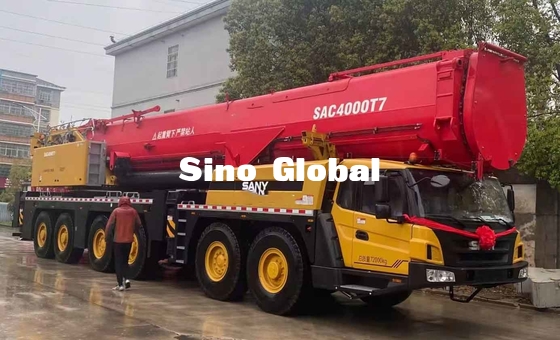

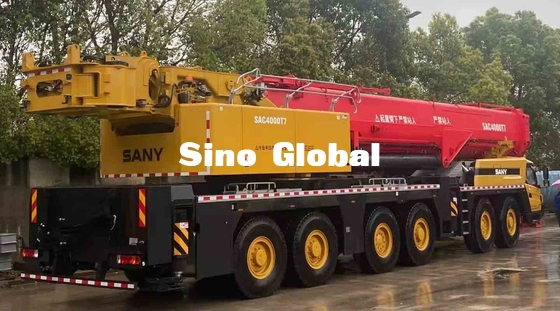

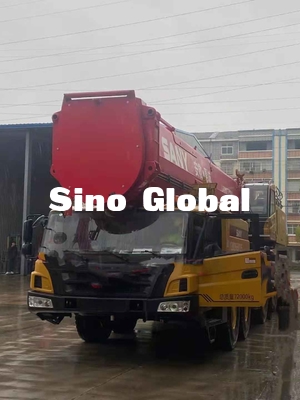

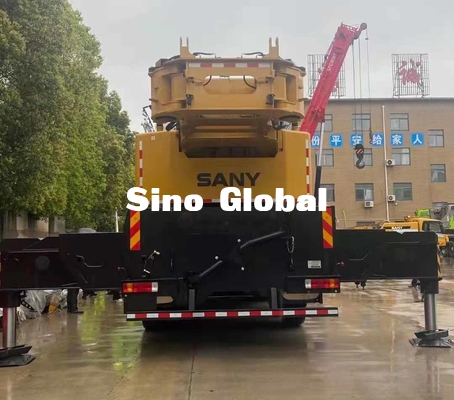

Used Sany SAC4000T7 Truck Crane model 2019
Prodcut Discription
| Item | value | |||
| CAPACITY | Max. lifting capacity | t | 400 | |
| WEIGHT | Gross weight | kg | 72000 (excl. boom sections 3~7) | |
|
POWER SUPERSTRUCTURE) |
Max. engine power | kW/rpm | 205/2200 | |
| Max. engine torque | N·m/rpm | 1100/(1200-1600) | ||
|
POWER {CHASSIS) |
Max. engine power | kW/rpm | 480/1800 | |
| Max. engine torque | N·m/rpm | 3000/1300 | ||
|
DIMENSIONS |
Overall length | mm | 17538 | |
| Overall width | mm | 3000 | ||
| Overall height | mm | 4000 | ||
|
TRAVEL |
Max. travel speed | km/h | 80 | |
|
Steering radius |
Min.steering radius | m | 12.5 | |
| Min.steering radius of boom tip | m | 14.4 | ||
| Wheel formula | - | 12×8 | ||
| Min.ground clearance | mm | 300 | ||
| Approach angle | ° | 16 | ||
| Departure angle | ° | 12 | ||
| Max.gradeability | - | 50% | ||
| Fuel consumption per 100km | L | ≤ 100 | ||
|
MAIN PERFORMANCE |
Working temperature range | ℃ | –25~+45 | |
| Min.rated lifting radius | m | 3 | ||
| Boom sections (Qty.) | - | 7 | ||
| Boom shape | - | U shape | ||
|
Max.lifting moment |
Basic boom | kN·m | 13230 | |
| Full-extension boom | kN·m | 8565 | ||
|
Boom length |
Basic boom | m | 15.4 | |
| Full-extension boom | m | 80 | ||
| Max. combination of boom+fixed jib | m | 74.8+6+42 | ||
| Outrigger span (Longitudinal×Transverse) | m | 9.4×9.6 | ||
| Jib offset | º | 0, 20, 40 | ||
|
AIRCONDITIONER |
In operator's cab | - | Heating & cooling | |
| In driver's cab | - | Heating & cooling | ||
