Product Details:
|
| Dimensions: | 12650mm*2500mm*3380mm | Operating Weight: | 29400kg |
|---|---|---|---|
| Engine Model: | WD615.329 | Max Tracel Speed: | 75 Km/h |
| Outrigger Lateral Distance Span: | 6m | Max Lifting Capacity: | 25 T |
| Min Working Radus: | 3000mm | Year: | 2013 |
| High Light: | Second Hand XCMG Crane 25 Ton,XCMG Crane 25 Ton Second Hand,3000mm Second Hand Crane XCMG 25 Ton |
||

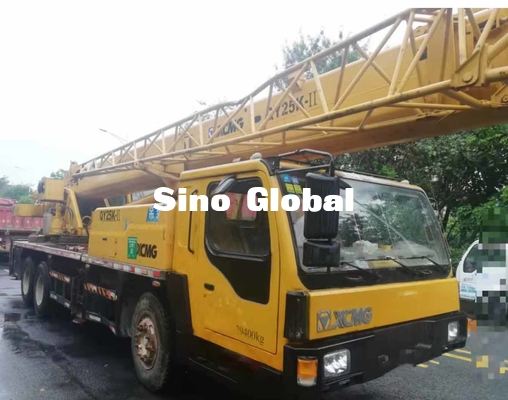

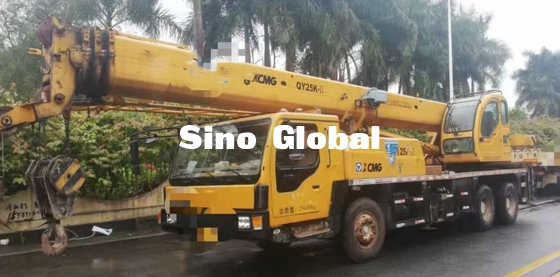

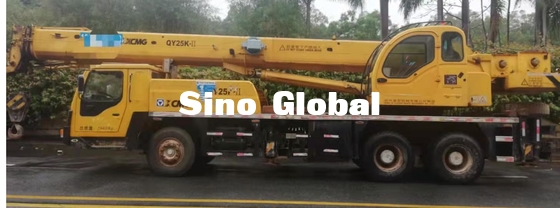

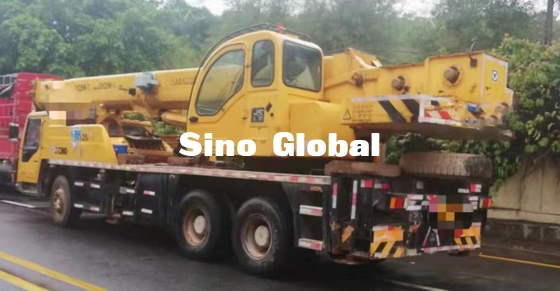

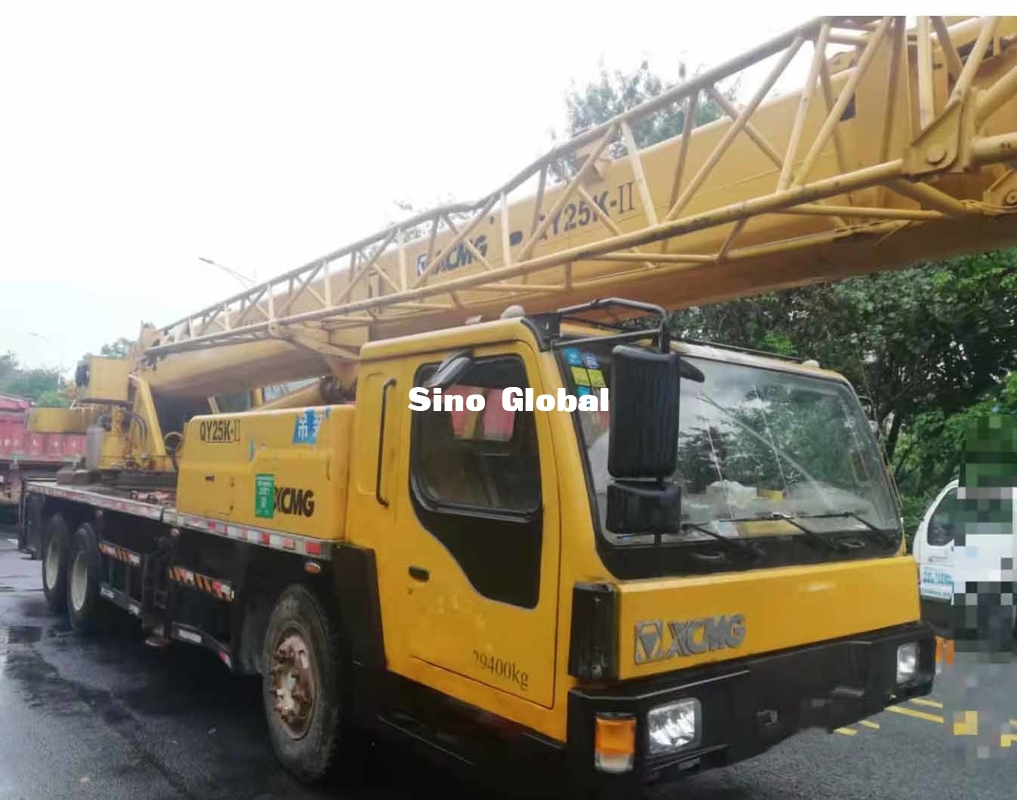

Used XCMG 25 Tons Truck Crane model 2013
| Used XCMG QY25K-II | Parameter | Unit | |
| Max.rated lifting capacity | 25000 | kg | |
| Min.rated working radius | 3 | m | |
| Boom Length | Base Boom | 10.7 | m |
| Fully Extended Boom | 34 | m | |
| Fully Extended Boom+jib | 34+8.15 | m | |
| Lifting Height | Base Boom | 10.8 | m |
| Fully Extended Boom | 34.19 | m | |
| Fully Extended Boom+jib | 42.3 | m | |
| Overall Length | 12650 | mm | |
| Overall Width | 2500 | mm | |
| Overall Height | 3380 | mm | |
| Wheelbase | 4425+1350 | mm | |
| Total Vehicle Mass in travel configuration | 294000 | kg | |
| Axle Load | Front Axle | 6600 | kg |
| Rear Axle | 22800 | kg | |
| Engine Model | SHANGCHAI SC8DK280Q3 | ||
| Engine Rated Power | 206/2200 | kw/(r/min) | |
| Engine Rated Torque | 112/1400 | N.m/(r/min) | |
| Max. Travel Speed | 75 | Km/h | |
| Oil Consumption per 100km | 37 | L | |
