Product Details:
|
| Engine Rated Power: | 223kw/1900rpm | Min.Turning Diameter: | 21m |
|---|---|---|---|
| Total Weight In Travel: | 33000kg | Max. Travel Speed: | 90km/H |
| Transport Package: | Comply With Export Packaging Requirements | Dimmension: | 12870*2550*3380mm |
| HS Code: | 87059091 | Year: | 2019 |
| High Light: | 2nd Hand Crane XCMG 25 Ton,Used Crane XCMG 25 Ton,XCMG Used Truck Mounted Cranes |
||

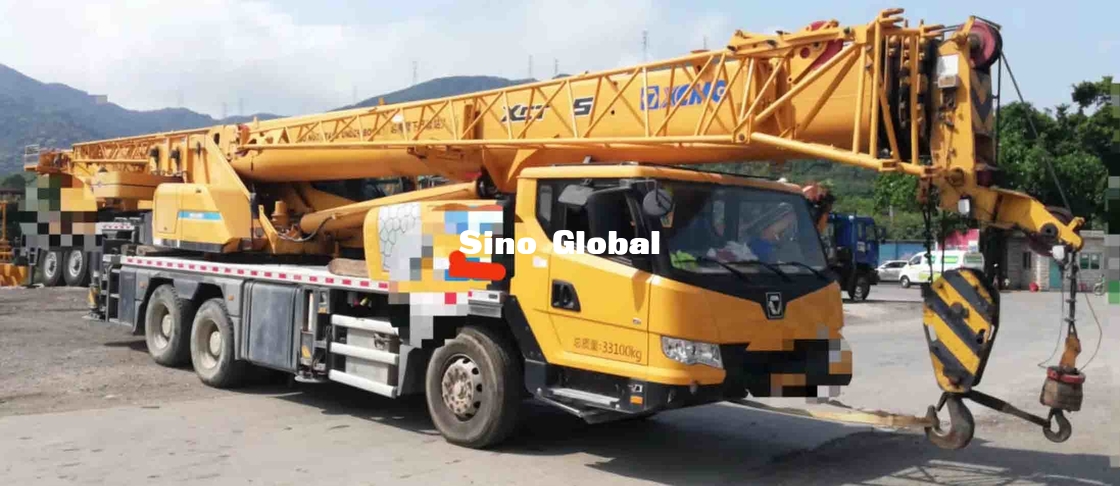

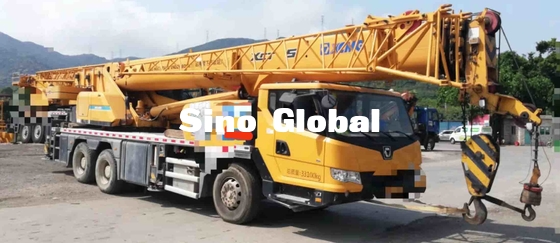

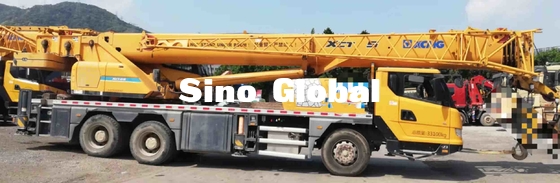

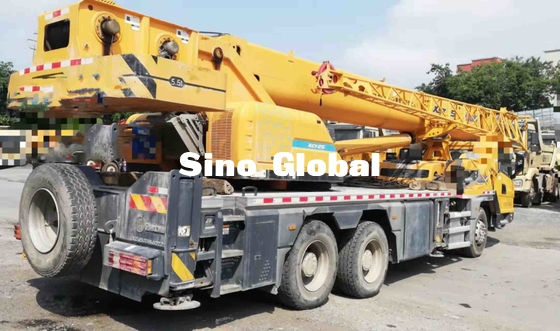

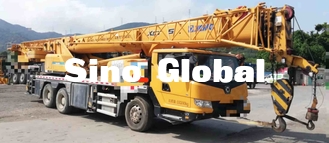

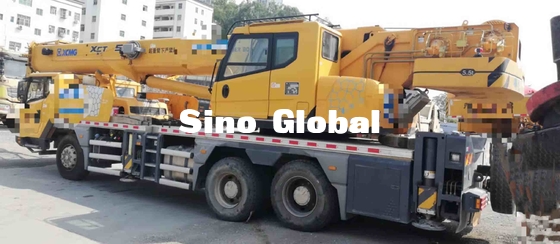

Used XCMG 25 Tons Truck Crane model 2019
| Dimension | Unit | XCT25L5 |
| Overall length | mm | 12870 |
| Overall width | mm | 2550 |
| Overall height | mm | 3470 |
| Total weight in travel | kg | 33000 |
| Engine model | SC9DF290.1Q4/SC9DF290.2Q4 | |
| Engine rated power | kW/(r/min) | 213/1900 |
| Engine rated torque | N.m/(r/min) | 1400/1400 |
| Max. travel speed | km/h | 90 |
| Min. turning diameter | m | 21 |
| Min. ground clearance | mm | 260 |
| Approach angle | ° | 12 |
| Departure angle | ° | 14 |
| Max. grade ability | % | 45 |
| Fuel consumption for 100km | L | 30 |
| Max. rated total lifting capacity | t | 25 |
| Min. rated working radius | m | 3 |
| Turning radius at turntable tail | m | 3.34 |
| Max. lifting torque | kN.m | 1132 |
| Base boom | m | 10.2 |
| Max.main boom | m | 41 |
| Max.main boom+jib | m | 50.2 |
